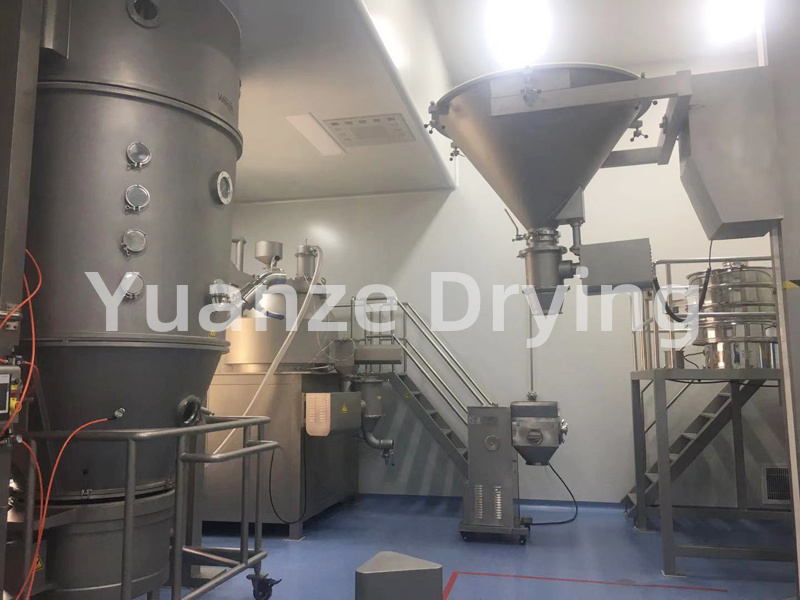

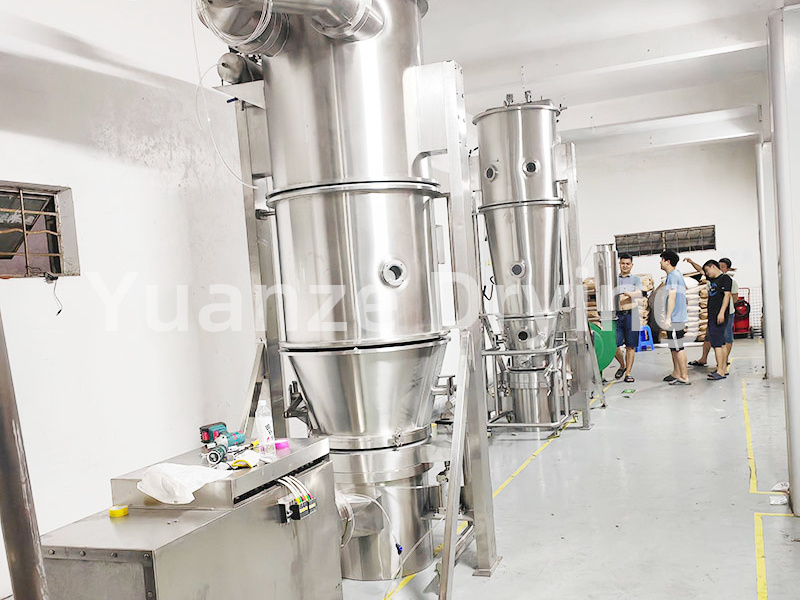

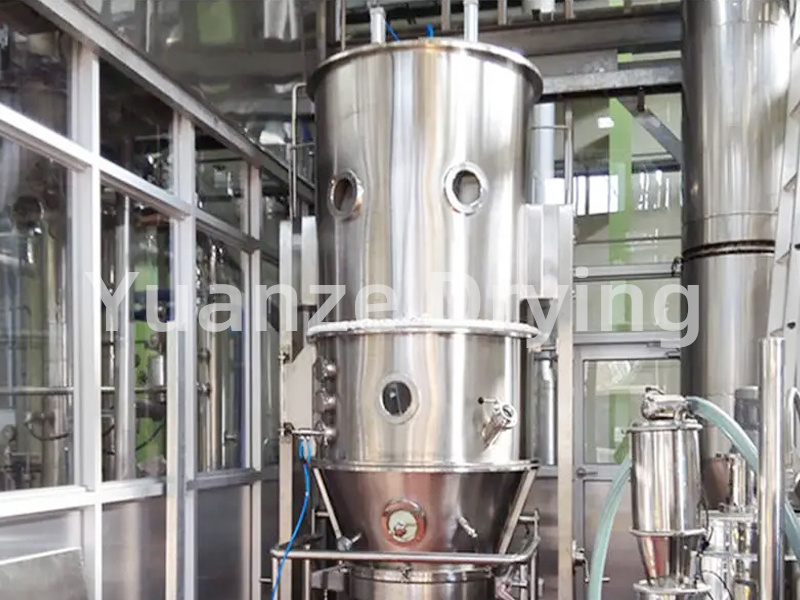

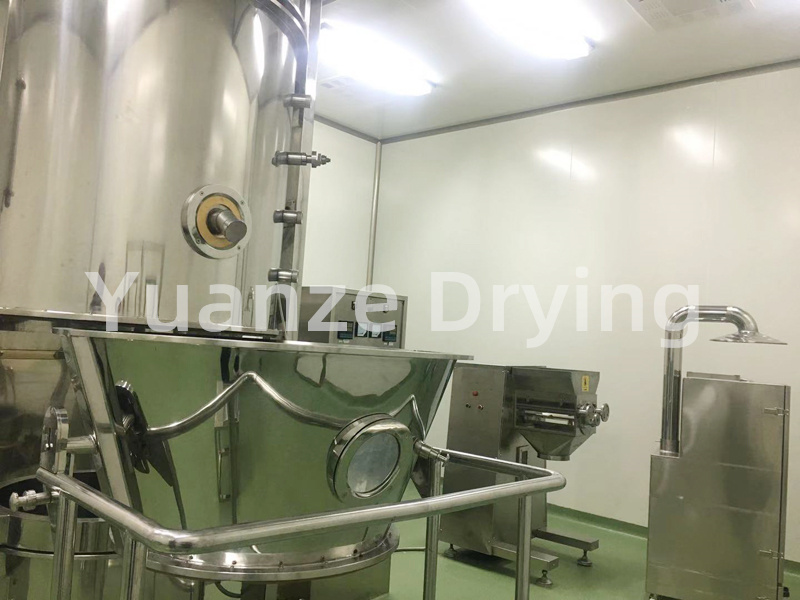

FG series vertical boiling dryer
FG series vertical boiling dryer
This machine is mainly suitable for drying powder or granular materials in industries such as medicine, food, and chemical industry. Fluidized drying, fast heat and mass transfer; Operate under closed negative pressure, without dust flying; Using anti-static filtering materials for safe operation;
Description
Principle
Fluidized drying, fast heat and mass transfer; On the basis of the GFG high-efficiency boiling dryer, this equipment adds a drying straight cut to make the material easier to dry;
● Operate under closed negative pressure without dust flying;
● Using anti-static filtering materials for safe operation;
● The equipment has no dead corners, is thoroughly cleaned, and has no cross contamination;
● Meet GMP regulatory requirements.
Application
This machine is mainly suitable for drying powder or granular materials in industries such as medicine, food, and chemical industry.
Technical Parameter
| model | unit | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | |
| project | |||||||||||
| Raw material container | diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
| production capacity | small | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
| big | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
| Steam consumption | kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
| air supply | M3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
| fan power | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
| temperature | ℃ | Automatic adjustment at room temperature~120 ℃ | |||||||||
| Material yield | % | ＞99 | |||||||||
| TIME | min | 15~30 | |||||||||
| Final moisture content | % | ~0.2 | |||||||||
| noise | dB | ≤75 | |||||||||
| Host height | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 | |
Note: Some parameters may be adjusted according to different materials during design, and the design shall prevail.
