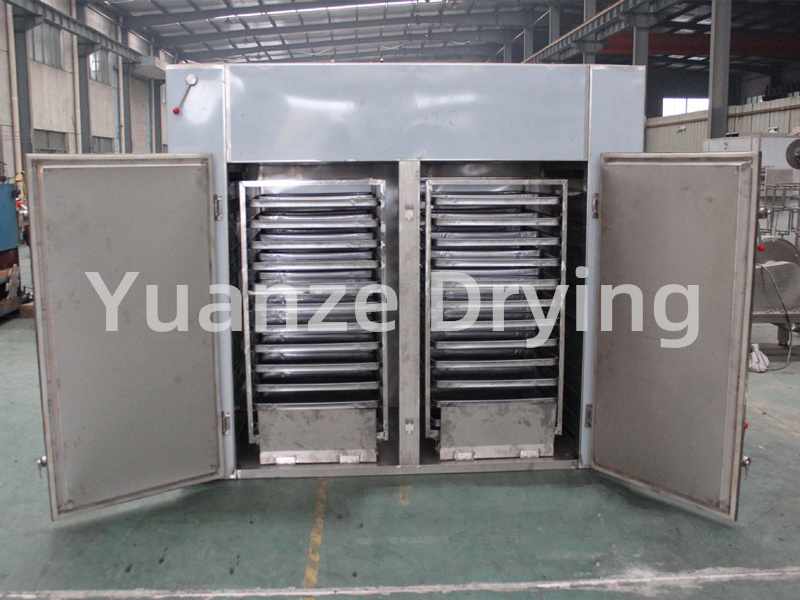

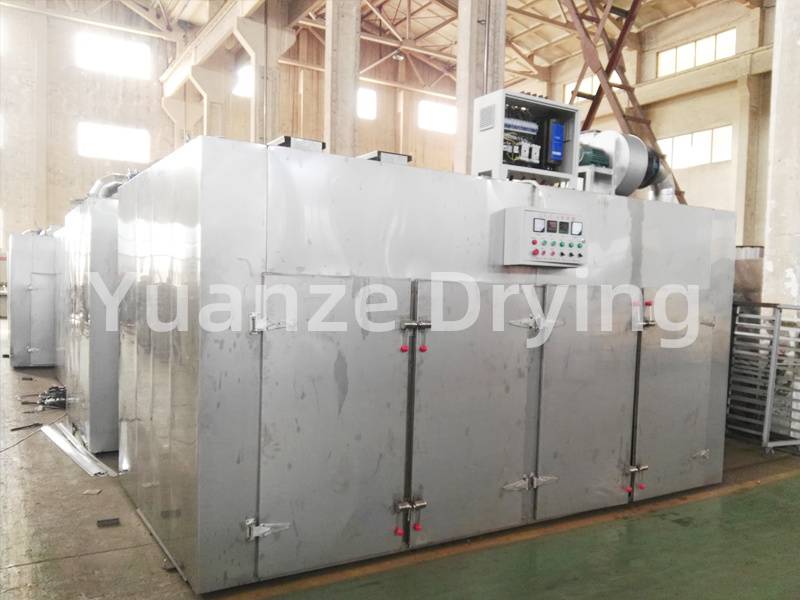

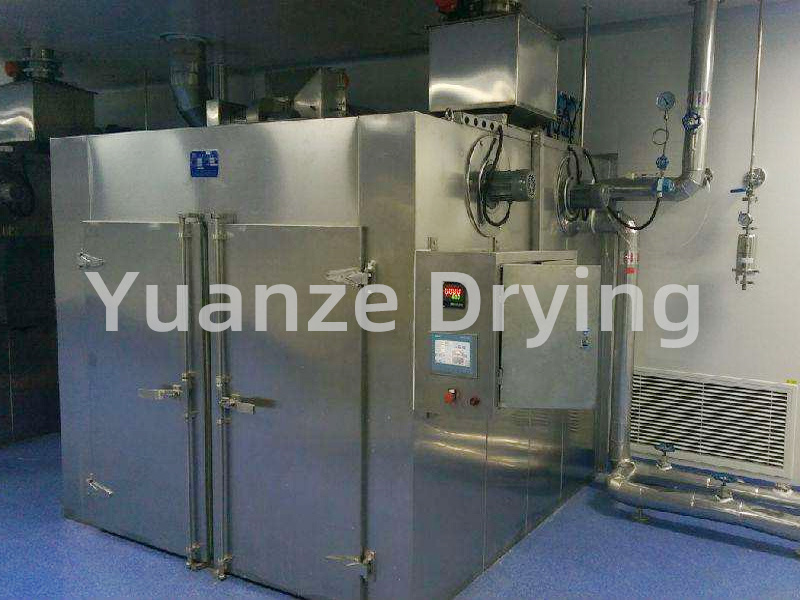

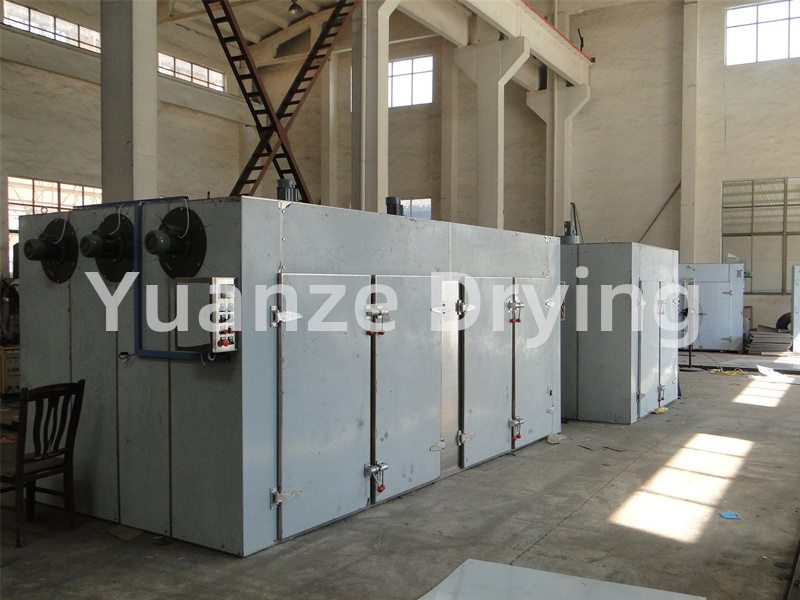

CT-C series hot air circulation oven
CT-C series hot air circulation oven
Description
The CT-C series hot air circulation oven is equipped with a low-noise and high-temperature resistant axial flow fan and an automatic temperature control system. The entire circulation system is fully enclosed, which increases the thermal efficiency of the oven from the traditional drying room of 3-7% to the current 35-45%, and the high thermal efficiency can reach 50%. The successful design of CT-C type hot air circulation oven has enabled China's hot air circulation oven to reach the level of domestic and international standards. It has saved a lot of energy for our country and improved the economic efficiency of enterprises. In 1990, the National Medical Administration issued an industry standard with the unified model RXH.
Heating sources include steam, electricity, far-infrared, and electric steam for users to choose from;
◎ Operating temperature: Steam heating at 50-140oC, up to 150oC;
Electricity consumption, far-infrared temperature of 50-350oC;
Equipped with automatic control systems and computer control systems for users to choose from;
The commonly used steam pressure is 0.02-0.8Mpa (0.2-8kg/m2);
Equipped with electric heating, calculated as 15KW according to Type I, practical 5-8kw/h;
Special requirements shall be explained during ordering;
Non standard oven prices are negotiable;
If the operating temperature is greater than 140oC or less than 60oC, it should be specified when placing an order;
The size of our factory's baking trucks and baking trays is uniform and interchangeable;
◎ Oven size: 460 × six hundred and forty × 45 (mm).
Most of the hot air circulates inside the box, with high thermal efficiency and energy savings. By utilizing forced ventilation, there is an adjustable air distribution plate inside the box, which ensures even drying of materials. The heat source can be steam, hot water, electricity, and far-infrared, with a wide range of options. The whole machine has low noise and balanced operation. Temperature control, easy installation and maintenance. It has a wide range of applications and can dry various materials, making it a universal drying equipment.
| Industry standard models | Model specifications | Each drying amount (kg) | Power allocation (kw) | Steam consumption (kg/h) | Heat dissipation area (m2) | Air volume (m3/h) | Temperature difference between upper and lower parts (oC) | Equipped with baking tray | External dimensions Face width × depth × high | Supporting drying truck | Equipment weight |
| RXH-14-B | CT-Ⅰ | 120 | 1.1 | 20 | 20 | 2800 | ±2 | 48 | 2430×1200×2375 | 2 | 1200 |
| RXH-27-B | CT-Ⅱ | 240 | 2.2 | 40 | 40 | 5200 | ±2 | 96 | 2430×2200×2433 | 4 | 1500 |
| RXH-41-B | CT-Ⅲ | 360 | 3 | 60 | 80 | 8000 | ±2 | 144 | 3430×2200×2620 | 6 | 2000 |
| RXH-54-B | CT-Ⅳ | 480 | 4 | 80 | 100 | 9800 | ±2 | 192 | 4460×2200×2620 | 8 | 2300 |
| RXH-5-C | CT-C-O | 25 | 0.45 | 5 | 5 | 3450 | ±2 | 16 | 1130×1100×1750 | 0 | 800 |
| RXH-7-C | CT-C-ⅠA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | 24 | 1400×1200×2000 | 1 | 1000 |
| RXH-14-C | CT-C-Ⅰ | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 | 1500 |
| RXH-27-C | CT-C-Ⅱ | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 | 1800 |
| RXH-27A-C | CT-C-ⅡA | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 4460×1200×2290 | 4 | 1800 |
| RXH-41-C | CT-C-Ⅲ | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3430×2200×2000 | 6 | 2200 |
| RXH-42A-C | CT-C-ⅢA | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3200×2000 | 6 | 2200 |
| RXH-54-C | CT-C-Ⅳ | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200×2290 | 8 | 2800 |
| RXH-25-A | Efficient high-temperature far-infrared sterilization oven power matching is carried out according to temperature requirements | 1200×1000×1600 | 1 | 1200 | |||||||
